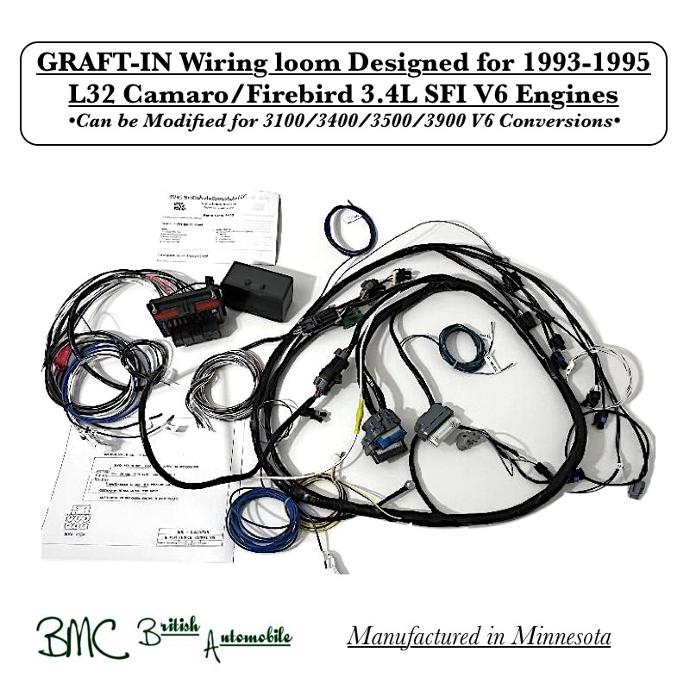

Introducing the Only Two-Part Graft-in Wiring Loom for GM Camaro/Firebird L32 V6 Conversions!
Upgrade your car with the convenience and performance of fuel injection! Our unique two-part graft-in wiring loom simplifies converting your Camaro/Firebird to the well-designed L32 3.4L V6 engine and its late-model PCM.
Plug-and-Play Ease:
• Fuse and relay panel Graft in portion easily integrates with your existing wiring, using standard MG/Lucas "colour" codes for clear identification.
• Engine side comes pre-wrapped and ready to plug-in, significantly reducing wiring complexities. This uses standard GM wiring Colors for easy identification in any factory wiring diagram.
• Clear instructions and labeled wires further simplify installation.
More Power, Better Economy:
• Fuel injection delivers superior powerband and fuel efficiency, even under spirited driving.
Standard engines produce 165 BHP and 220 Lb-Ft torque. and with Basic modifications, easily achieve 215 BHP and 255 Lb-Ft torque. Our optimized wiring layout surpasses the original GM design for enhanced performance.
Unmatched Flexibility:
• Supports air conditioning with optional upgrade (part 1-413).
• Standard manual transmission wiring, or we can accommodate the 4L60E automatic when you tick the box. (Part# 1-414)
• Works with 1993-1995 L32 V6 Camaros and Firebirds with appropriate intake and sensors.
• Allows future engine/driveline removal with ease of wiring disconnect.
Complete Kit Includes:

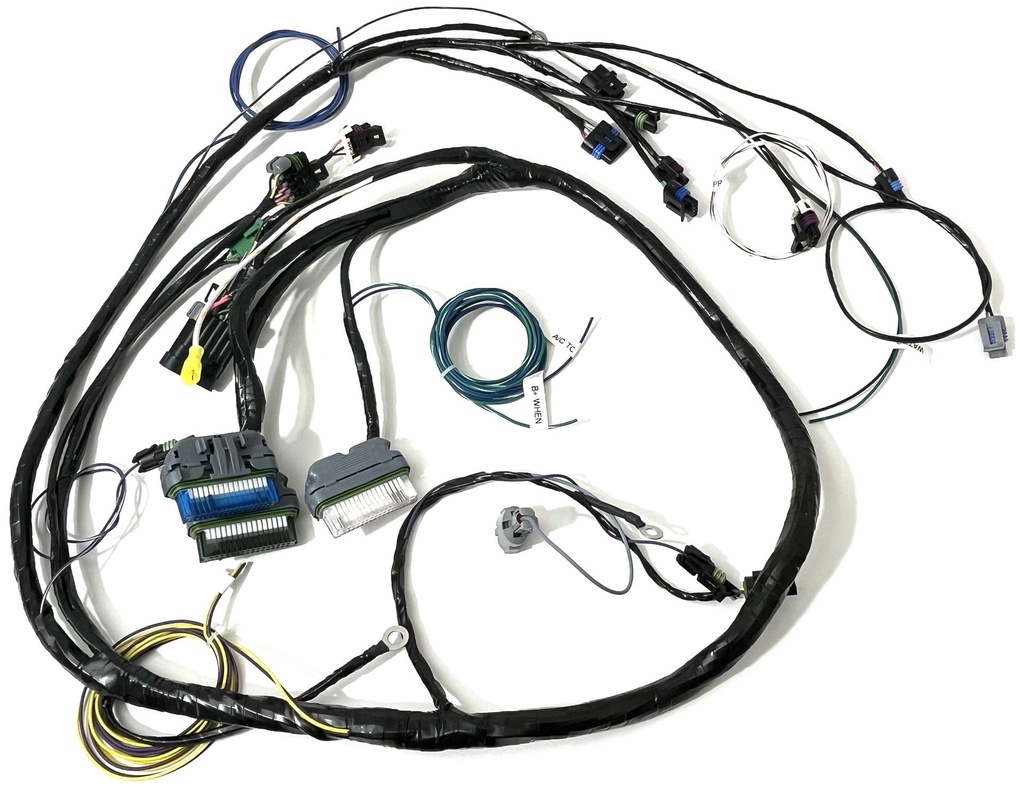

• Engine-to-PCM Wiring, pre-wrapped for easy installation.

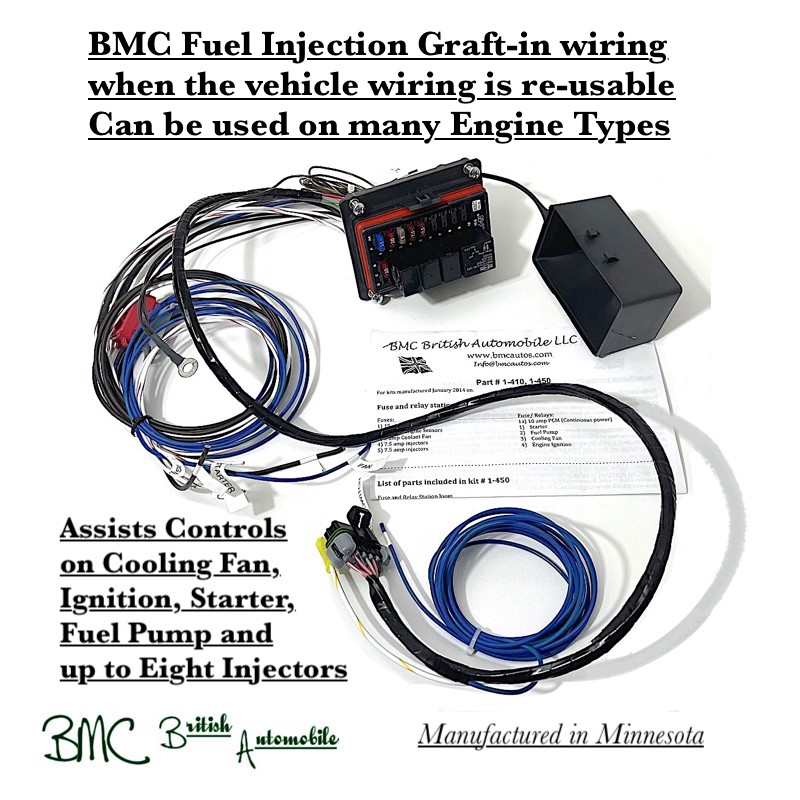

• Fuse and Relay Control Box ready to graft in.
• Comprehensive installation instructions.
• Dedicated tech support from BMC.
Beyond MGBs:
While originally designed for the MGB with any 1993-95 Camaro/Firebird 3.4L V6 swap, our wiring loom can accommodate various GM SFI V6 engines in other vehicles. 3100, 3400, 3500, and 3900. Contact us for custom variations and additional applications.
Ready to Unleash the Potential of Your Car?
Order your Stand-Alone system today and experience the ease and power of L32 V6 fuel injection!
Options:
Choose Air Conditioning if you plan to install Air Conditioning ANYTIME in the future. To go without this option means that the wiring and computer lengths and positions change. Get it now if you Ever want the possibility to install AC in the future!
When running the 4L60-E Automatic, the wiring (and subsequently the PCM) needs the extra connections.
Most usually, the Sub Wiring Loom of the 3.4L Camaro/Firebird engine is still in usable shape. Save money and reuse what you have, unless you know it is in poor shape. PLEASE NOTE: If you are running this wiring with a different engine (3400, 3500, Other), please let us know as these other engines will require a different injector loom! We can help you out building your own, or we can build these for you.
Additional Notes:
**Requires 8-12 week lead time.**
Looking for a Complete wiring system to your MGB, or other British car? Purchase our MGB or British Car Premium wiring system with the 3.4L V6 SFI option for your Best Pacakge Deal!
Computer/PCM sold separately. Explore our selection of manual, performance, and automatic options.
For complete vehicle wiring systems (MGB and others), visit our online catalog.
____________________________________________________
Hey Carburetor Guys!
Our Fuel Injection is straight forward. Comparatively, if you were installing a different engine with a carburetor into any car: ignition power, a starter, alternator, tachometer, cooling fan, fuel pump, temperature sender, and oil pressure would have to be wired in. If you are capable of wiring in a carbureted engine, you can do the fuel injection system with BMC- Easy!
___________________________________________________
OPTIONS AVAILABLE:
EARTH STRAP KIT
ALTERNATOR AND POWER JUNCTION BLOCK KIT
ALDL- DATA LINK CONNECTOR
REVERSING LAMP PLUG
REVERSING LAMP SWITCH
SUB-INJECTOR WIRING LOOM
The one and only BMC Produced 3.4L V6 Wiring Loom is a two part wiring kit that allows the use of the well designed and compact Camaro/Firebird 3.4L 'L32' late PCM, 3.4L Iron Head SFI (Sequential Port Fuel Injection) engine, and standard (or modified) factory intake manifold. We have dyno'ed these engines in Standard form and the normal output of these engines is 165 BHP and 220 Lb-Tq Before any PCM tunes, compression, camshaft or other modifications to the engine. Sticking with Fuel injection gives a wide powerband, and good economy even when the driver is heavy on the "Loud Pedal." With Slight modification, the engines can easily achieve 215 BHP and 250 Lb-Tq, and More. This wiring Should be on the top of your list to order! Made to Order, in-house of all new, and High Quality wiring products that meet or exceed original factory specifications, our wiring is the best system possible for your MGB or other 3.4L V6 Engine conversion. All New Materials. Wiring layout has been proven to exceed GM original outlay. Engine to PCM portion of our wiring harness is produced with GM wiring "Colors." Body side of the engine wiring consists of easy to understand Modern Relays and Fuses with Lucas "Coloured" wiring. Exceptionally small relay box for easy fitment. Easy to understand. Easy Connect/Disconnect Body loom to Engine loom for service. We Don't Skip Steps. Built to Last. Supports Air Conditioning when option 1-413 is ordered. Standard Five speed (or Non-Computer controlled Auto) wiring will Support 4L60E Automatic when the Automatic option 1-414 is ordered. Support our Small Business so we can afford to support You! Purchase our wiring: our telephone and and email tech support is Yours for the project. Requires 1993-1995 'L32' 3.4LCamaro/Firebird V6 with appropriate intake system and sensors. Standard 1-410 is standard length main/engine wiring loom. If Air Conditioning is planned in the distant future, the air conditioning option should be ordered right away to avoid extra costs and difficulties down the road.3100, 3400, and some 3500 and 3900: This wiring can be fit to alternate GM 60*V6 engines, as long as all the standard 3.4 'L32' sensors can be mimicked, with similar injectors, and correct software for the PCM. It should be noted that the later aluminum head engines are in fact, a much larger and more difficult step to take, so it is not often utilized. If this is a direction you want to go- speak to us before starting down that path.
Included with the kit: Engine to PCM wiring, wrapped and ready to go. All fuses and relays to control starting, cooling, ignition, fuel pump, injector, and sensors wrapped into an easy to use and wire in. Installation instructions. Tech support for wiring looms purchased from BMC. Items to consider: Computer options sold separate. Use our search feature to see L32 3.4L PCM Options for your particular requirements.
